New Innovative QTB-30 Bell and Buzzer Signal Scheduling Timers Ideal for Schools and Office's

Model: SIGNAL-PRO TIMER

New Signal-Pro Signal Bell/Buzzer School Class Room Scheduling Timers are ideal for signal of start/End times for class room start time/end time, work shift start/end time, coffee break, lunch and shift end times The Signal-Pro timers are available for simple one bell/buzzer signal system to multiple enterprise bell/buzzer signal systems, The signal systems are available ether 24 Volt systems for smaller applications to 120 Volt systems for large/enterprise applications

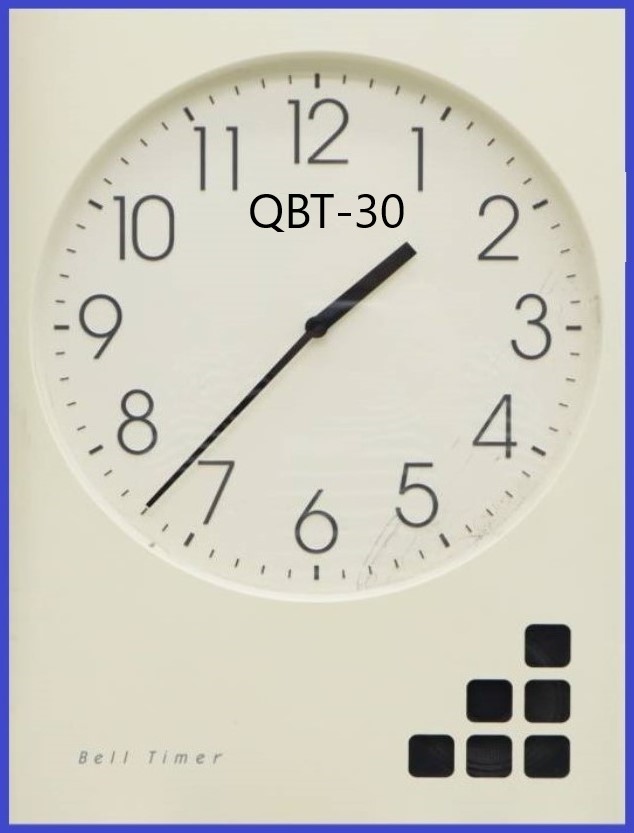

New QTB-30 Bell / Buzzer Signal Scheduling Timer

New Innovative School Signal Progarm Timer

Progammable to start of school classes, lunch time break times and the end of of class periods or work day shifts with optional featured melodies. Refined design and outstanding function makes the new QTB-30 a real necessity for every office, schools or other any industry that requires scheduling of signal bells, buzzers, lighing or other facilities systems.
• Up to 60 scheduling programs can be set a week at a time.
• Two Output dry contacts Relays External output can be used
for Bells and Buzzers lighting, air-conditioning, ventilaton etc.
• Different scheduling settings for each day of the week.
• Resetting for different times each day is simple and easy
• The optional 10 melodies can be combined as preferred.

QTB-30 Features and Specifications

System Features and Specifications
Input power supply: AC 100V-120V, AC 200V-240V, 50/60Hz
Power consumption: 4.0W Power failure backup: 24 hours, program : 10 years Operating temperature: range -10℃～+50℃ Time accuracy: Within ±3 sec./Month (＋5～＋35℃) Signal output: 2 independent channels (dry contact signal) Contact output capacity: AC 125V/5A, AC 250V/3A, DC 30V/5A Program setting range: 1 Minute increments

Optional melody output feature: 10 melodies are preset for hourly time signal. Westminster Chime: 40Sec., Edelweiss: 42 sec., Melody Fair: 43 sec., Chim Chim Cheree: 40 sec., Bibbidi-Bobbidi-Boo: 30 sec., Yuyake Koyake: 40 sec., Going Home: 45 sec., Etude Op. 10, No.3: 45 sec., Beauty and the Beast: 44 sec. and Whole New World: 41 sec. Built in speaker: 500 mw [Line output] 150 mV (47k) Dimensions: W270 x H372 x D58.5mm Dial diameter: ø,249.5mm Weight Approx. 2.0kg

"Click to View Information Brochure

Time Access Systems Offers a Full Line of Industrial & Commercial Grade Signal-Pro Bell/Buzzer Timers

Signal-Pro Series Signal Progam Bell and Buzzer Timers

can handle any signal program arrangement in most industrial locations there are multiple shift Start and End times with different schedules depending on the day of the week, our timers can handle dozens of events per day with different bell or buzzer schedule for every of the week. Our high quality digital timers are truly the most flexible 7 day 365 day timers available, if you require a bell or signal to ring automatically at predetermined times, then our full range of digital timers will provide your organization with the most flexibility and convenience of any timers available today, we also carry 2 & 4 circuit models for organizations that to switch more than one circuit at a time.

Signal-Pro Industrial State of The Art Signal Timers

Signal-Pro Industrial and Comercial High Quality Signal Program Timers

Time Access Systems Offers a Full Line of Industrial and Commercial Grade high quality state of the art Signal-Pro Bell and Buzzer Timers. Our timer line includes stanard wired signal timers, heavy duty signal timers, Wireless Schedule signal timers Network program controler Web based Plug N Play... easy set up scheduler timer system

"Click to View All of Our Industrial Timers
